Structure-based alignments and sequence correlators

"structure-based" means that in regions where the structures
superimpose, each residue is aligned with its closest mate
in the superimposed structure.

Scrolling down below this alignment you will find a "sequence correlator"
for answering questions like "what residue in yeast corresponds to
P124 of Rb capsulatus?". It is a vertical sequence alignment with
residue number as well as type for each residue. In the case of yeast
where appropriate two numberings are given, one with the presequence
as in Hunte's structures, and one counting from the first residue of
the mature protein.
excerpt of cyt b:
      Bos chick Sacchce Rb.s Parac Rb.capsul
 120  S106  S107  S105  S120  S120  S120
 121  Y107  Y108  Y106  Y121  Y121  Y121
 122  T108  L109  R107  K122  K122  K122
 123  --    --    S108  A123  A123  A123
 124  --    --    P109  P124  P124  P124
 125  F109  Y110  R110  R125  R125  R125
 126  L110  K111  V111  E126  E126  E126

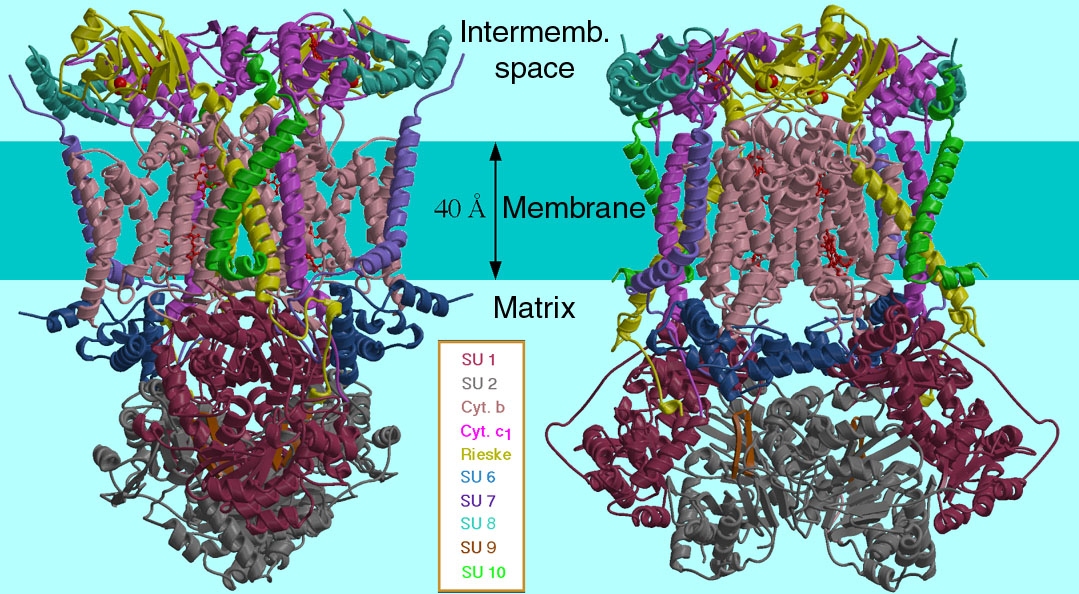

monoclinic beef bc1 crystal

Cyt. bc1 subunits:

Iron-Sulfur Protein
Cytochrome c1
Cytochrome c1, Helices marked (byt Rb.caps seq wrong)
Cytochrome b
Cytochrome b/b6-IV
Core1&2, MPPa&b
